Circle Geometry Problem

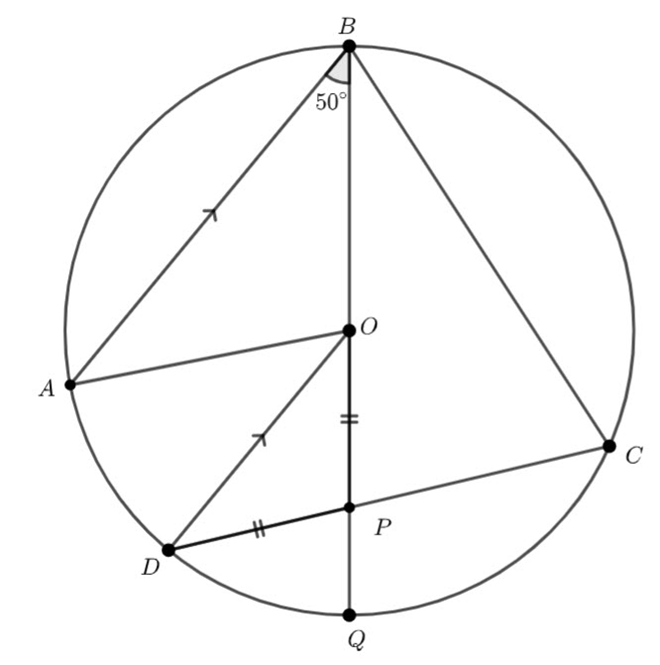

In the diagram, points $A, B, C, D$ and $Q$ lie on a circle centre $O$ , radius $6$ cm and diameter $BQ, \angle{ABQ}=50^\circ, AB$ is parallel to $DO$ and point $P$ lies on diameter $BQ$ such that $OP=DP=4$ cm.

(a) Find $\angle{BCD}$

(b) Determine the length of $PC$ .

$\angle{BOD}=180^\circ-50^\circ=130^\circ$ (Co-interior angles in parallel lines are supplementary.)

$\angle{BCD}=\frac{1}{2}\times 130=65^\circ$ (Angles subtended by the same arc. The angle at the centre is twice the angle at the circumference.)

$\angle{BCD}=65^\circ.$

Let $PC=x$

From the intersecting chord theorem

$\begin{equation*}4\times x=2\times 10\end{equation}$

$\begin{equation*}4x=20\end{equation}$

$\begin{equation*}x=5\end{equation}$

$PC=5cm$

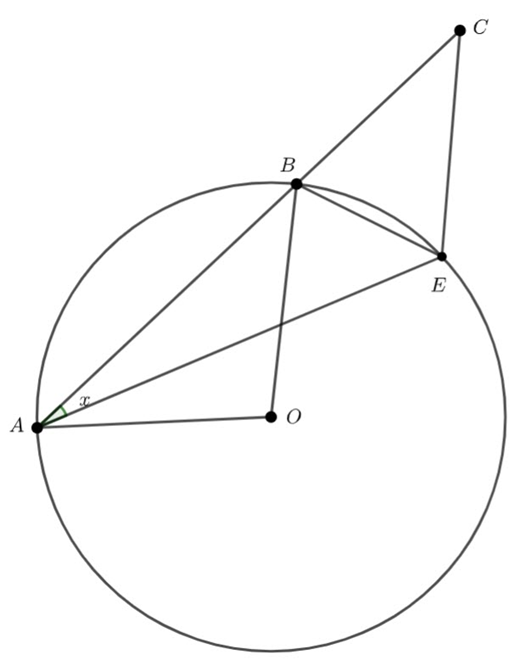

A chord $AB$ of a circle $O$ is extended to $C$ . The straight line bisecting $\angle{OAB}$ meets the circle at $E$ . Let $\angle{BAE}=x$ . Prove that $EB$ bisects $\angle{OBC}$ .
